DVG-MES9019-015-BZ

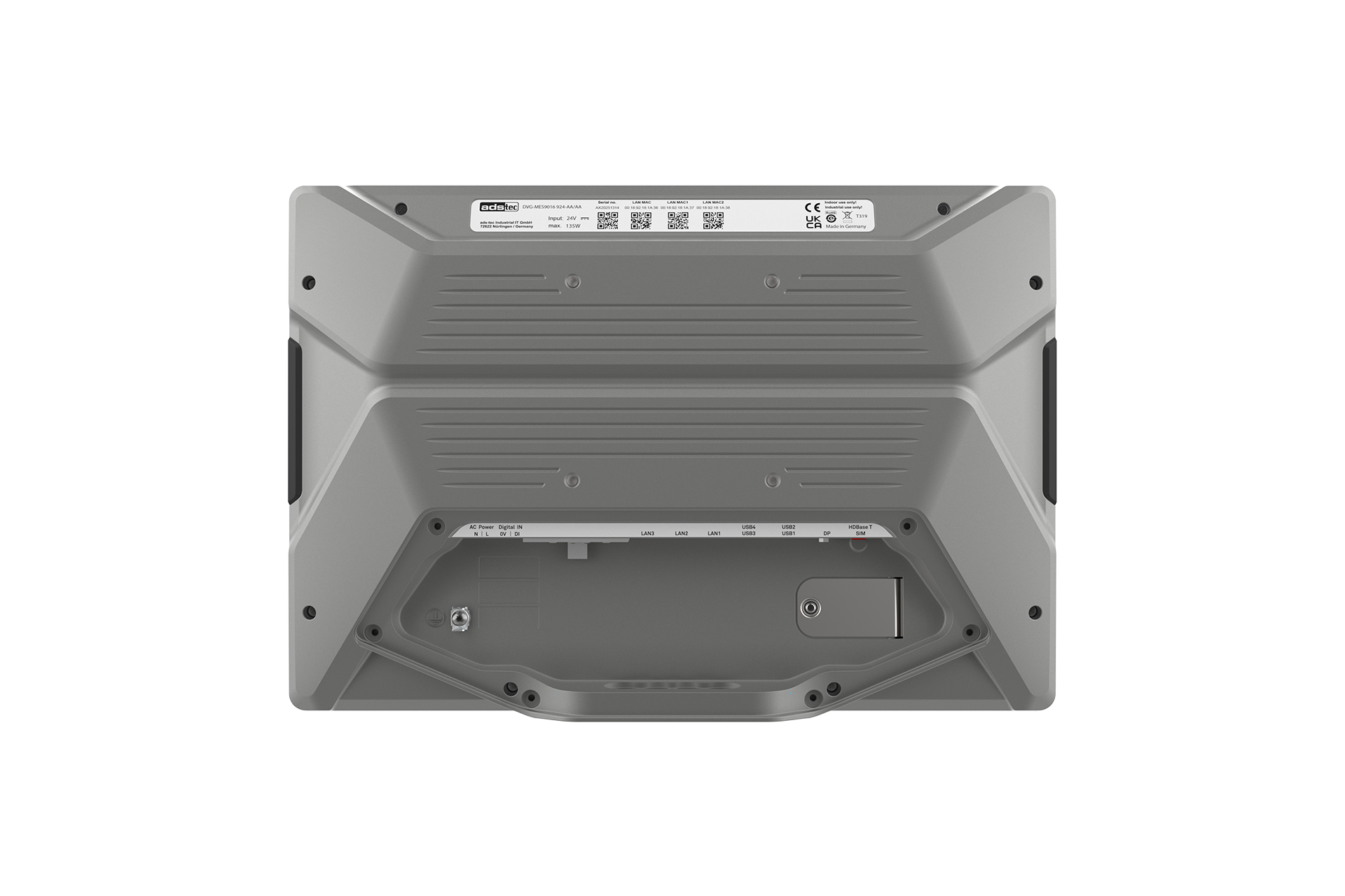

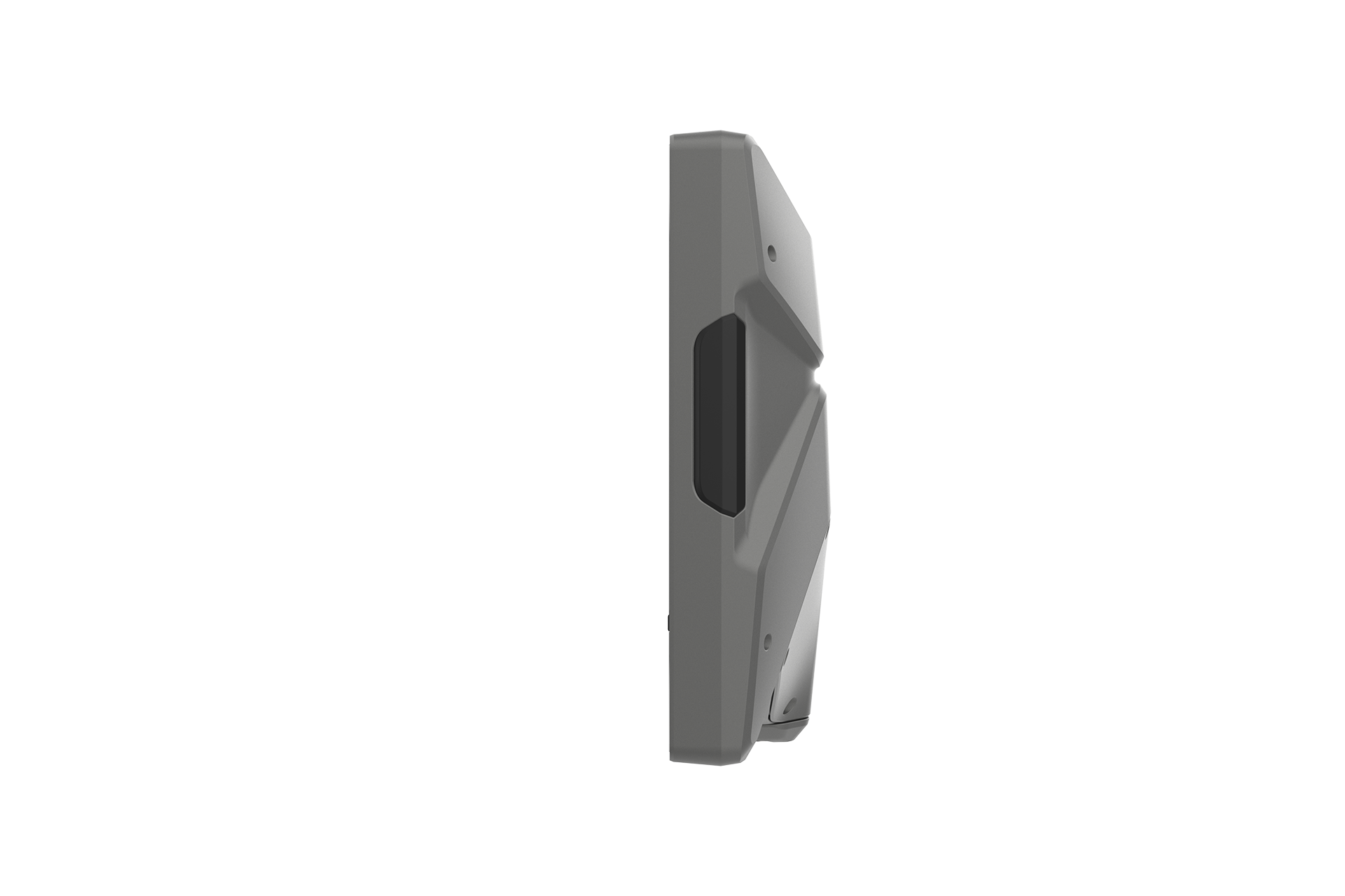

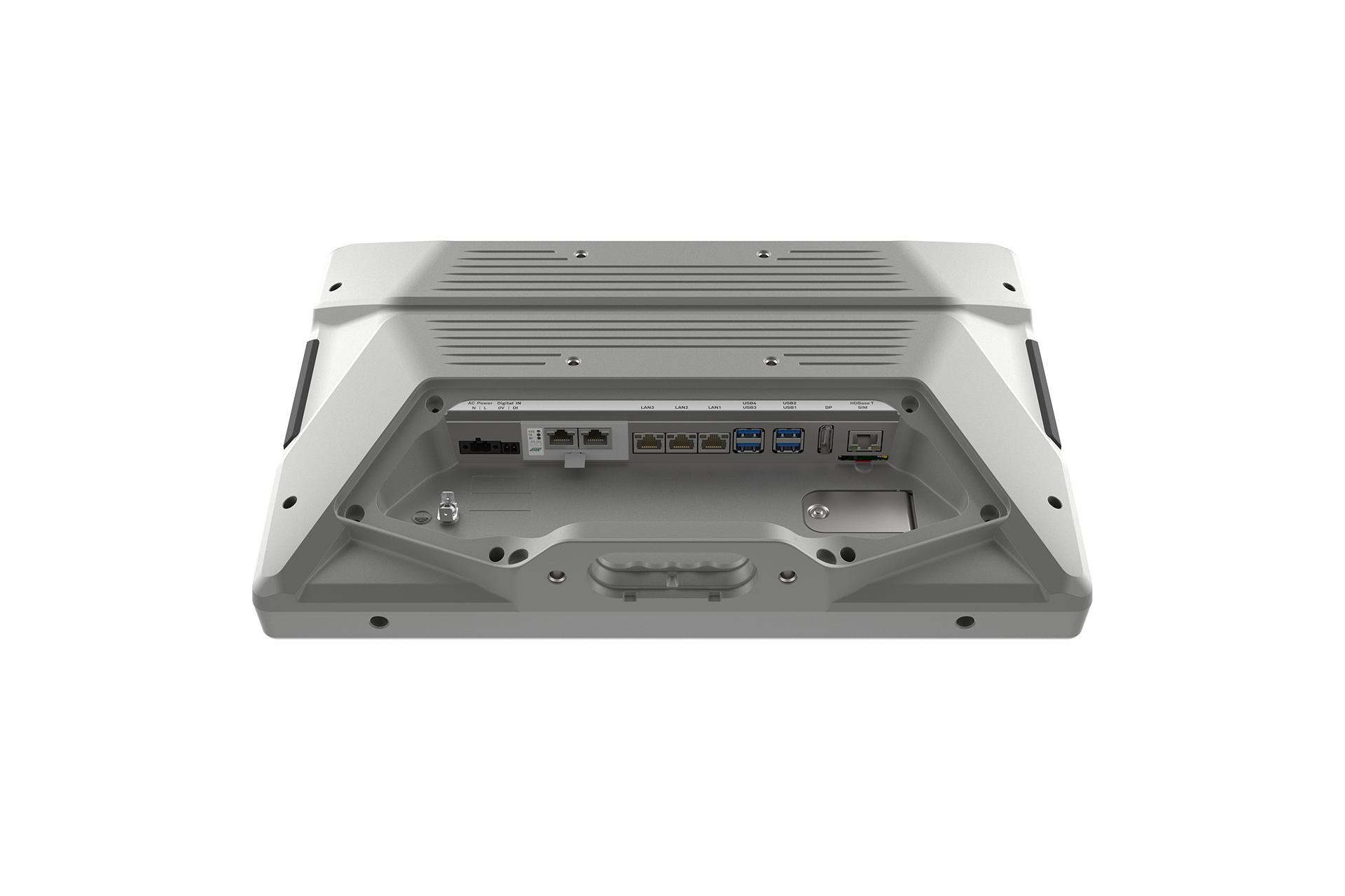

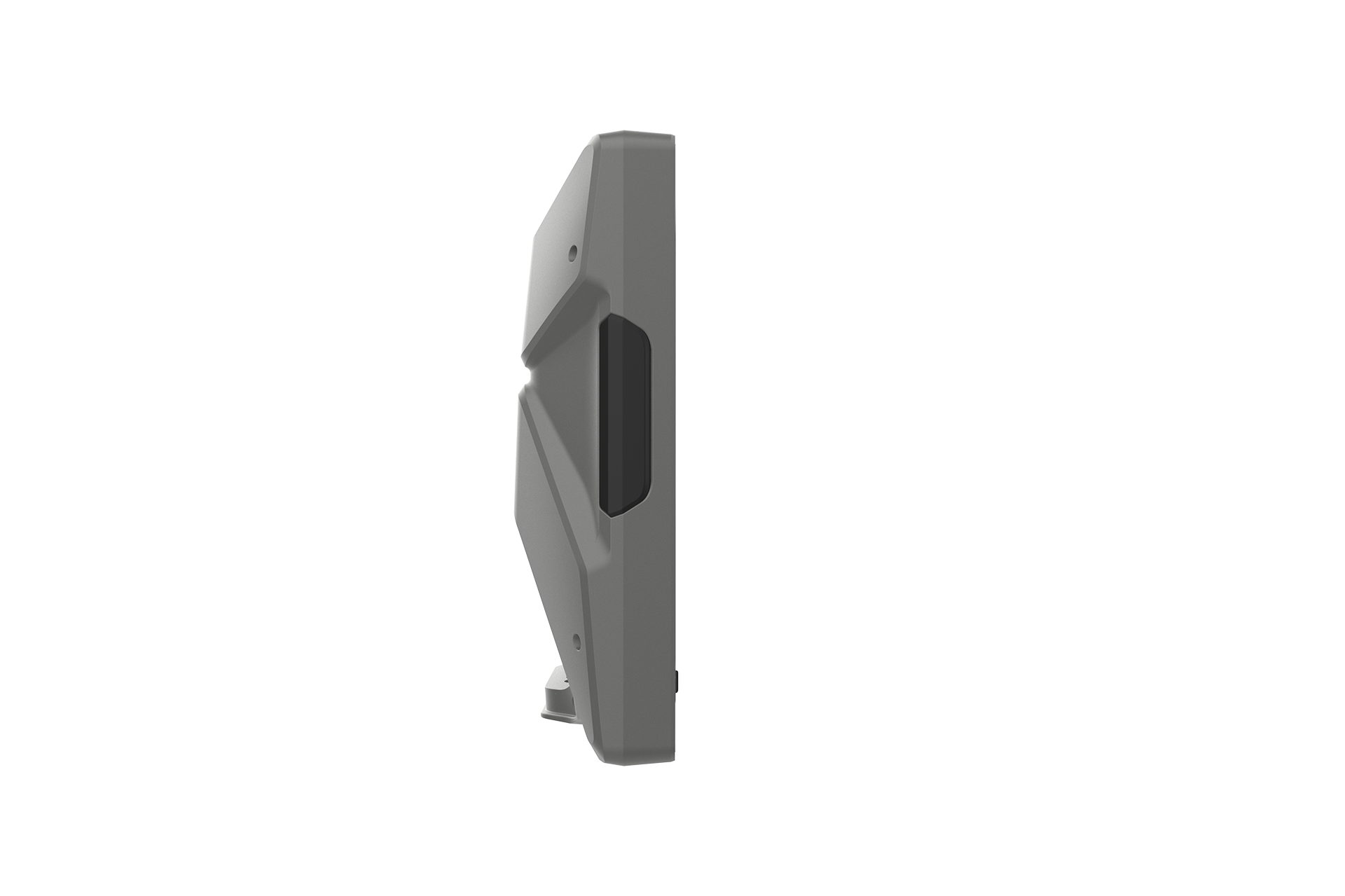

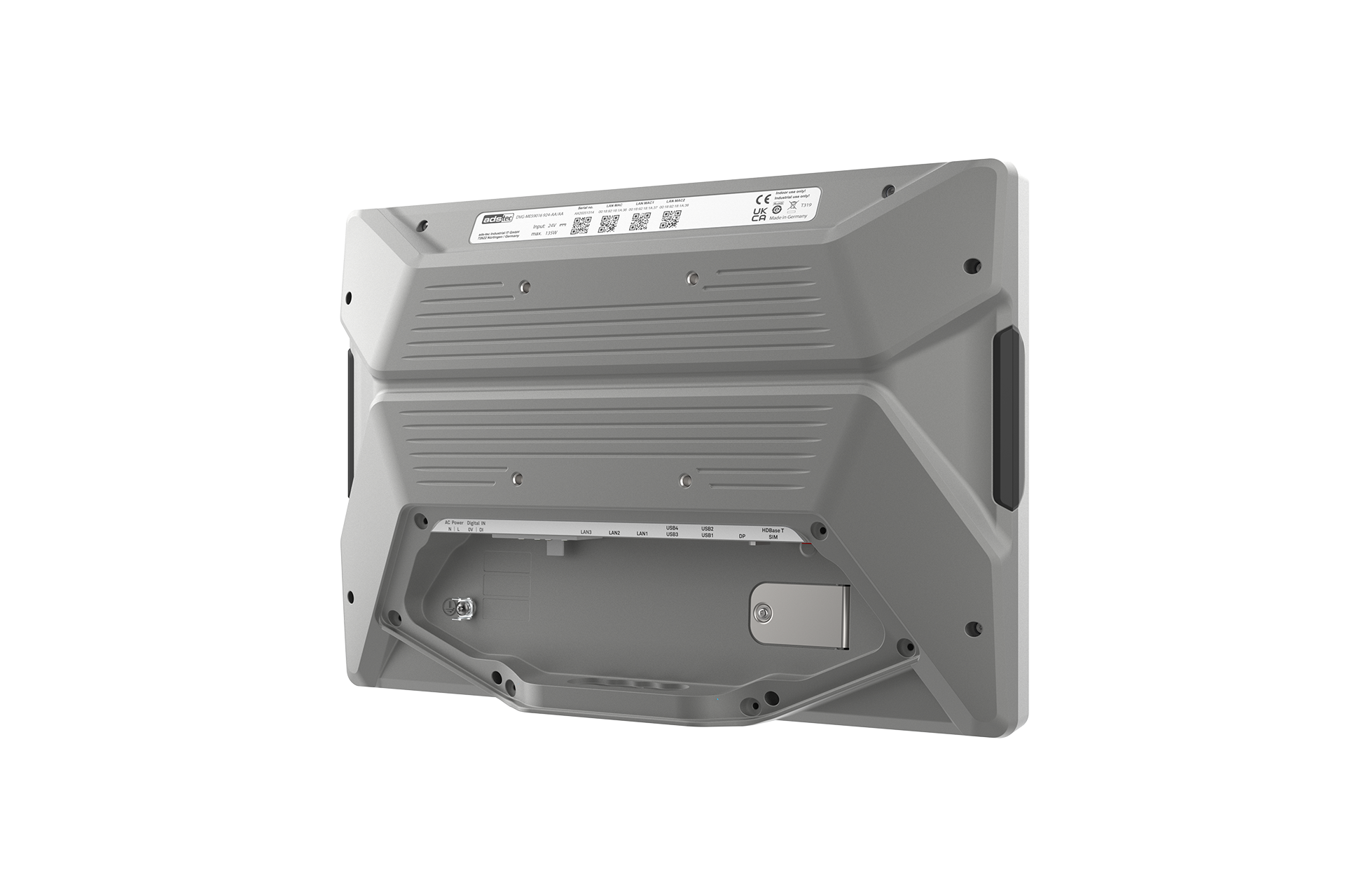

ADS-TEC MES9000 Basis 18.5" Full-HD, PCAP Multi-Touch, Intel Core i5, 24V DC

Manufacturer:	ads-tec
Manufacturer no.:	DVG-MES9019-015-BZ
Product no.:	S-021-155933

Available, Delivery time: 3 weeks

Contact sales

The product has been removed from the comparison list.

The product has been added to the comparison list.

There are too many products in the comparison list.

DVG-MES9019-015-BZ has been added to the cart has been removed from the cart

Cart

Product information

Description

MES9000 as an HMI panel PC impresses not only with its high performance and simple integration into the machine or system, but also with the outstanding user-friendliness of the large multi-touch display and the contemporary design.

Show more Show less

Technical data

Width:	310 mm
Height:	80 mm
Length:	465 mm
Weight:	6 kg
Ambient temperature max.:	40 °C
Ambient temperature min.:	0 °C
Analog interfaces:	1 x DisplayPort++ (1.2), 1 x Smartcard-Reader für ADS-TEC Big-LinX
Brightness (cd/m²):	500
CPU:	Intel® Core™ i5-8365UE 1,6 GHz
Country of origin:	Germany
Display size:	18.5"
Ethernet interfaces:	3 x Ethernet (10/100/1000 Mbit/s)
Height:	80 mm
Input voltage:	24 VDC
JMobile usable?:	No
Memory / Flash:	128 GB
On/off switch:	Yes
Operating humidity (relative):	not specified
Operating system:	IGEL Linux, Windows 10 IoT Enterprise 2021 LTSC
Operating voltage (typical):	0 V
Power consumption (W):	0 W
Protection rating:	IP65
RAM:	8 GB
Resolution:	Not specified
Splinter protection:	No
Touchscreen:	PCAP Multi-Touch
USB interfaces:	4 x USB 3.1 Gen. 2
Voltage range max.:	0 V
Voltage range min.:	0 V
