SCH86BXM
SCANCON SCH86BXM, Ex hollow shaft, AISI 316, IP67, mining, end cap
| Manufacturer: | SCANCON |
|---|---|
| Manufacturer no.: | SCH86BXM |
| Product no.: | S-008-158445 |
Available, Delivery time: on request
Product information
Description
English: The Scancon SCH86BXM is a highly robust stainless steel hollow shaft encoder specifically developed for the extreme requirements of mining and heavy industry.
Certifications: Globally approved according to ATEX, IECEx, and EAC Ex for use in hazardous areas.
Material Quality: Full AISI 316 stainless steel construction for maximum corrosion protection under the harshest conditions.
Hollow Shaft Design: Through-bores available from Ø 5/8 inch to Ø 1 inch for direct mounting.

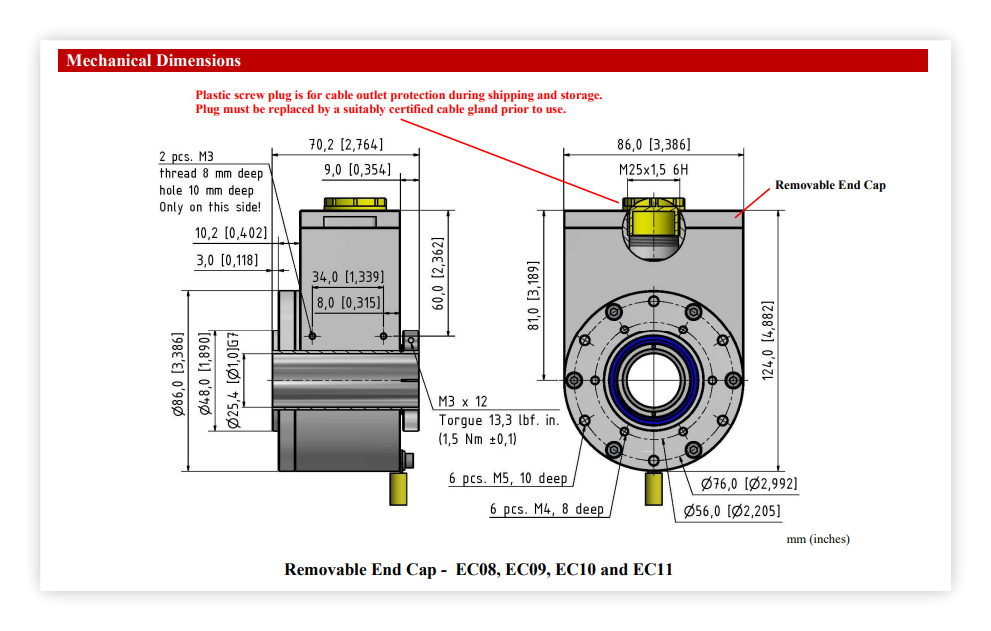

Easy Installation: Equipped with a removable end cap for convenient on-site wiring.
High Protection: Protection rating up to IP 67 and a wide operating temperature range from -40 °C to +70 °C.
Show more
Show less
Technical data
| Weight: | 3.75 kg |
|---|---|
| ATEX: | Zone 1/21 |
| Ambient temperature max.: | 70 °C |
| Ambient temperature min.: | -40 °C |
| Country of origin: | Denmark |
| Diameter: | 86 mm |
| Encoder resolution max. (PPR): | 4096 |
| Encoder resolution min. (PPR): | 25 |
| Encoder type: | Incremental-Encoder |
| Protection rating: | IP67 |
| Shaft diameter max.: | 25.4 mm |
| Shaft diameter min.: | 15.875 mm |
| Shaft length max.: | 0 mm |
| Shaft length min.: | 0 mm |
