2RMHD
SCANCON 2RMHD, encoder, heavy duty, 7500 ppr, IP65, 4.5-30 VDC
| Manufacturer: | SCANCON |
|---|---|
| Manufacturer no.: | 2RMHD |
| Product no.: | S-008-158407 |
Available, Delivery time: on request
Product information
Description
The Scancon 2RMHD is an extremely heavy-duty incremental shaft encoder, specifically developed for heavy industry applications. It is characterized by its massive shaft load capacity and a robust aluminum housing.
Application area: Heavy industry

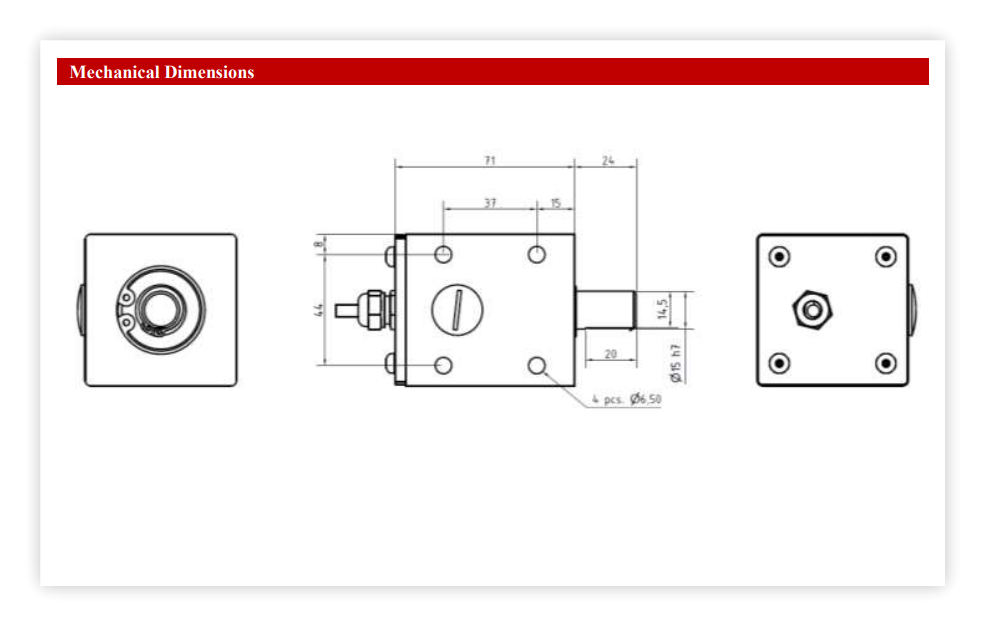

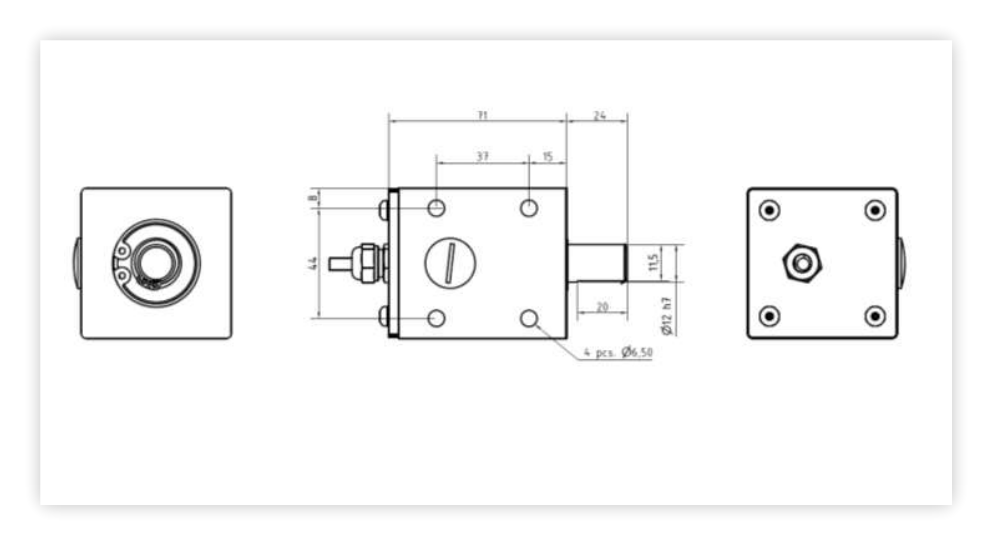

Shaft: Solid shaft Ø 12 mm or Ø 15 mm
Load capacity: Extremely high shaft loads (radial 500 N / axial 250 N)
Precision: Resolution up to 7500 ppr
Protection: IP65 housing protection against dust and moisture
Show more
Show less
Technical data
| Weight: | 0.715 kg |
|---|---|
| ATEX: | No |
| Ambient temperature max.: | 85 °C |
| Ambient temperature min.: | -40 °C |
| Country of origin: | Denmark |
| Diameter: | 1 mm |
| Encoder resolution max. (PPR): | 7500 |
| Encoder resolution min. (PPR): | 1 |
| Encoder type: | Incremental-Encoder |
| Protection rating: | IP65 |
| Shaft diameter max.: | 15 mm |
| Shaft diameter min.: | 12 mm |
| Shaft length max.: | 24 mm |
| Shaft length min.: | 24 mm |
