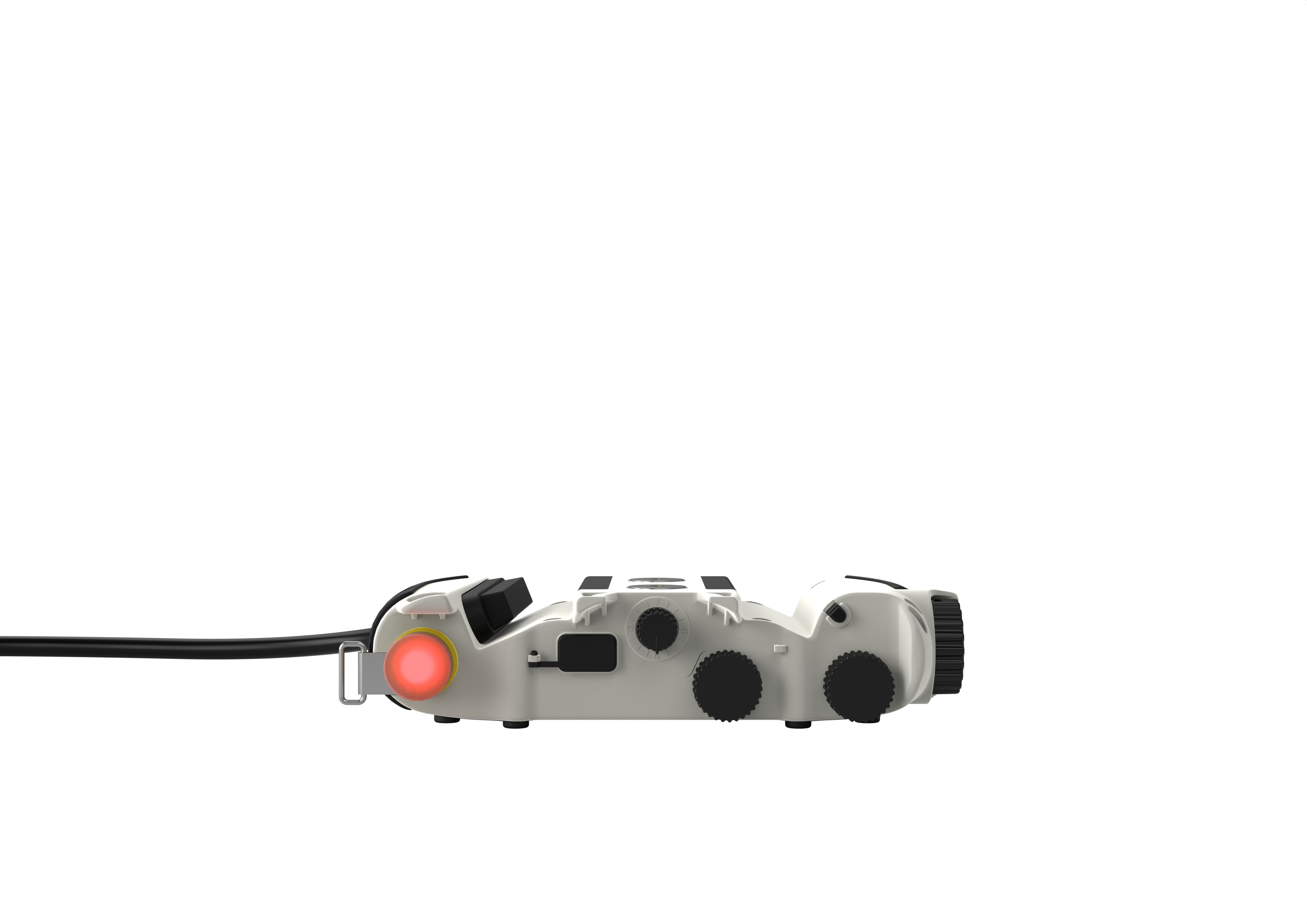

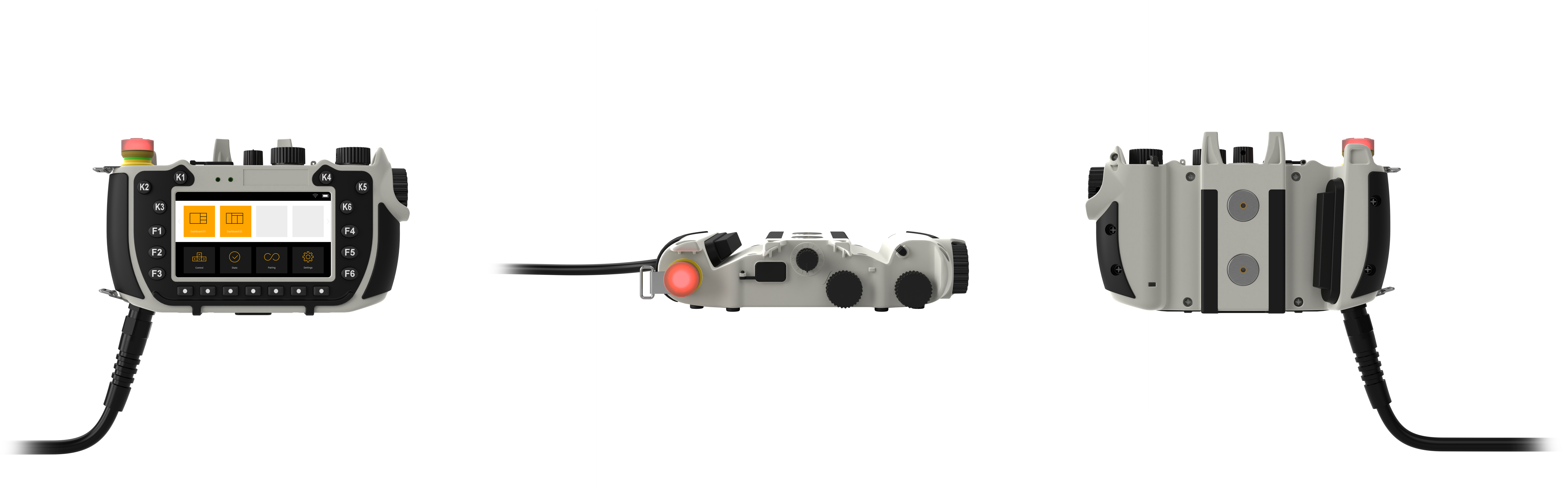

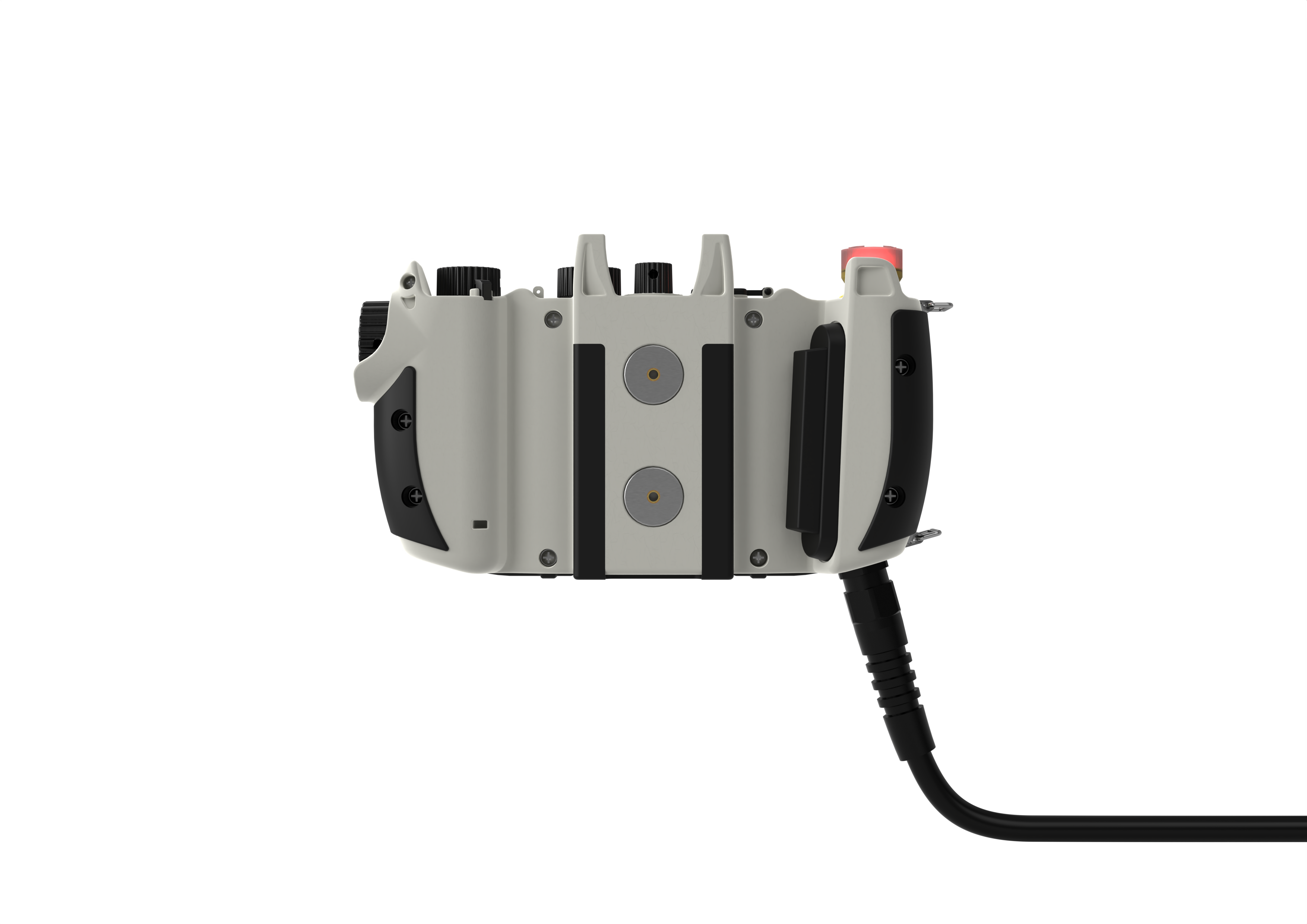

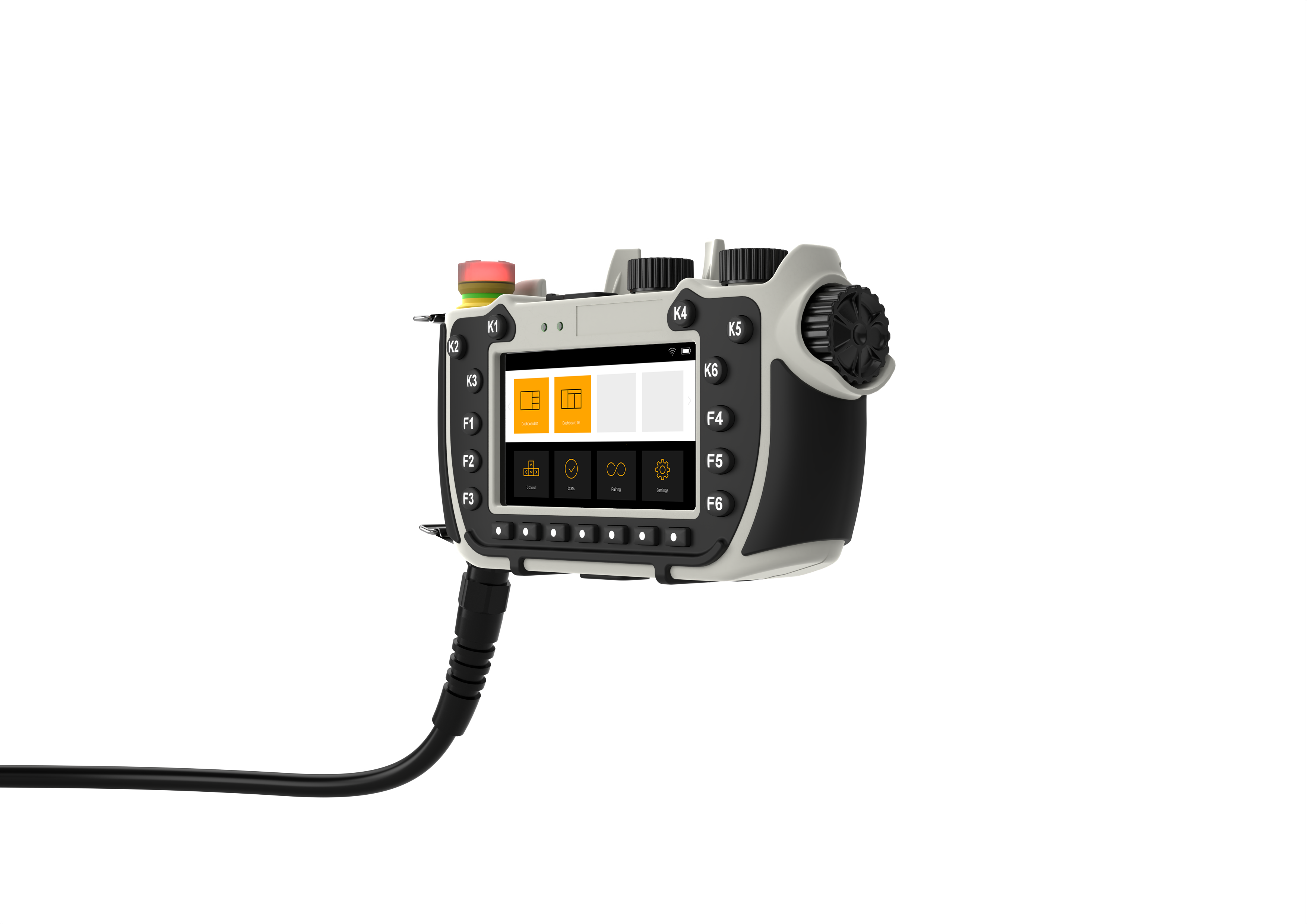

X5 Wired wheel 10 m
EXOR X5 Wired wheel 10 m, 5" Display, Linux, Stop Button
| Manufacturer: | Exor International S.p.A |
|---|---|
| Manufacturer no.: | 10100610YE-0003 |
| Product no.: | S-061-156446 |
Available, Delivery time: on request
Product information
Description
The X5 Mobile HMI is a safety-tested device with a compact and lightweight design. The illuminated emergency stop button leads to great operator safety.
The integrated devices (keypad, potentiometer, handwheel) can be fully programmed, enabling fast and individual use. X5 is fully programmable with JMobile.
Equipped with a 5" display, a resistive touch screen and a multi-touch interface, it allows intuitive operation and offers a great user experience. user experience.
Show more
Show less
Technical data
| Width: | 50 mm |
|---|---|
| Height: | 130 mm |
| Length: | 220 mm |
| Weight: | 0.8 kg |
| Brightness (cd/m²): | 300 |
| CPU: | 32-bit RISC single core - 528 MHz |
| Country of origin: | Italy |
| Current consumption max.: | 0.25 A |
| Display size: | 5" |
| Height: | 130 mm |
| Memory / Flash: | 4 GB |
| Operating system: | Linux |
| Operating voltage (typical): | 24 V |
| Protection rating: | IP64 |
| RAM: | 512 MB |
| Resolution: | 480 x 272 |
| Touchscreen: | Resistive |
| Voltage range max.: | 30 V |
| Voltage range min.: | 18 V |
