eX207

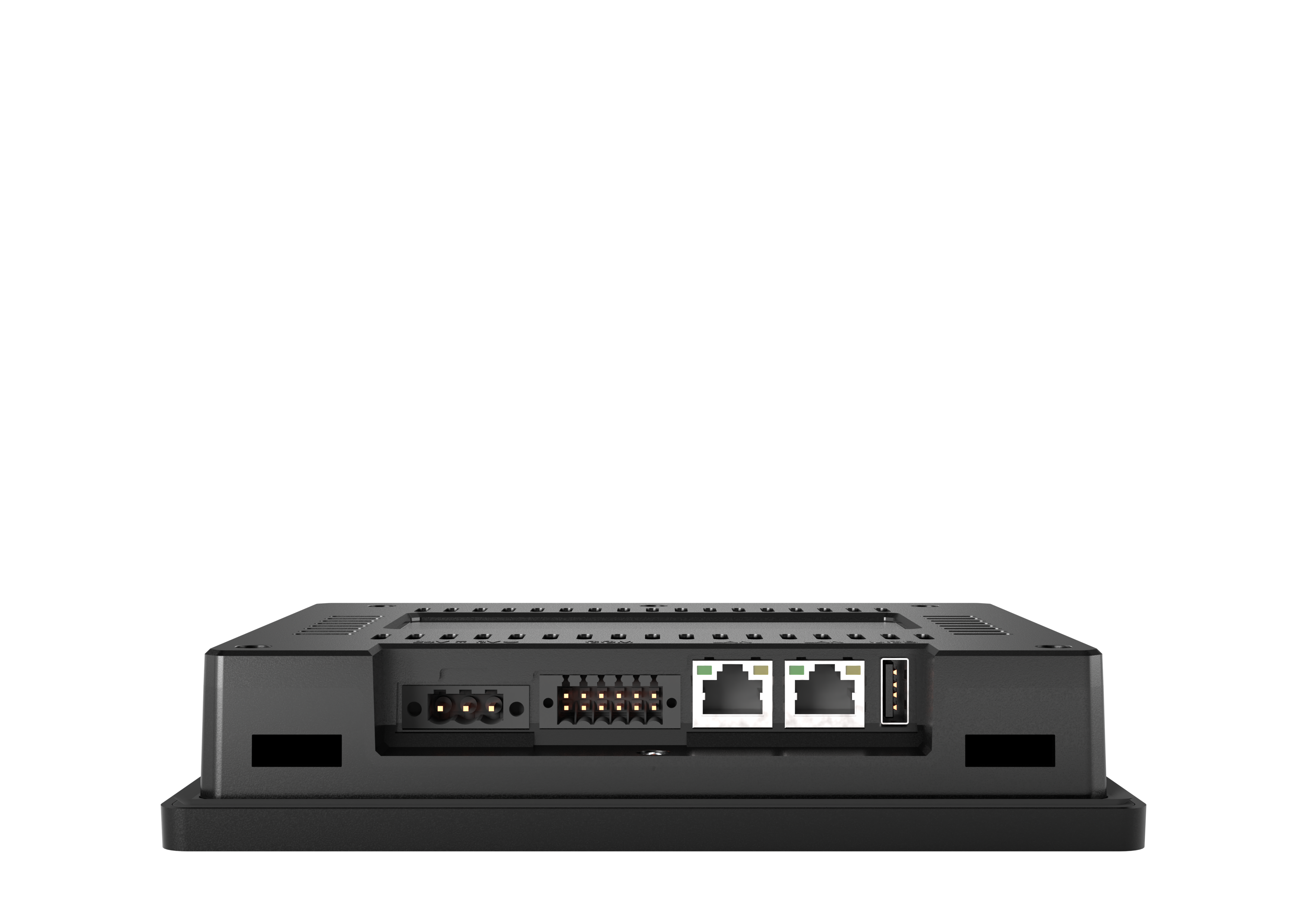

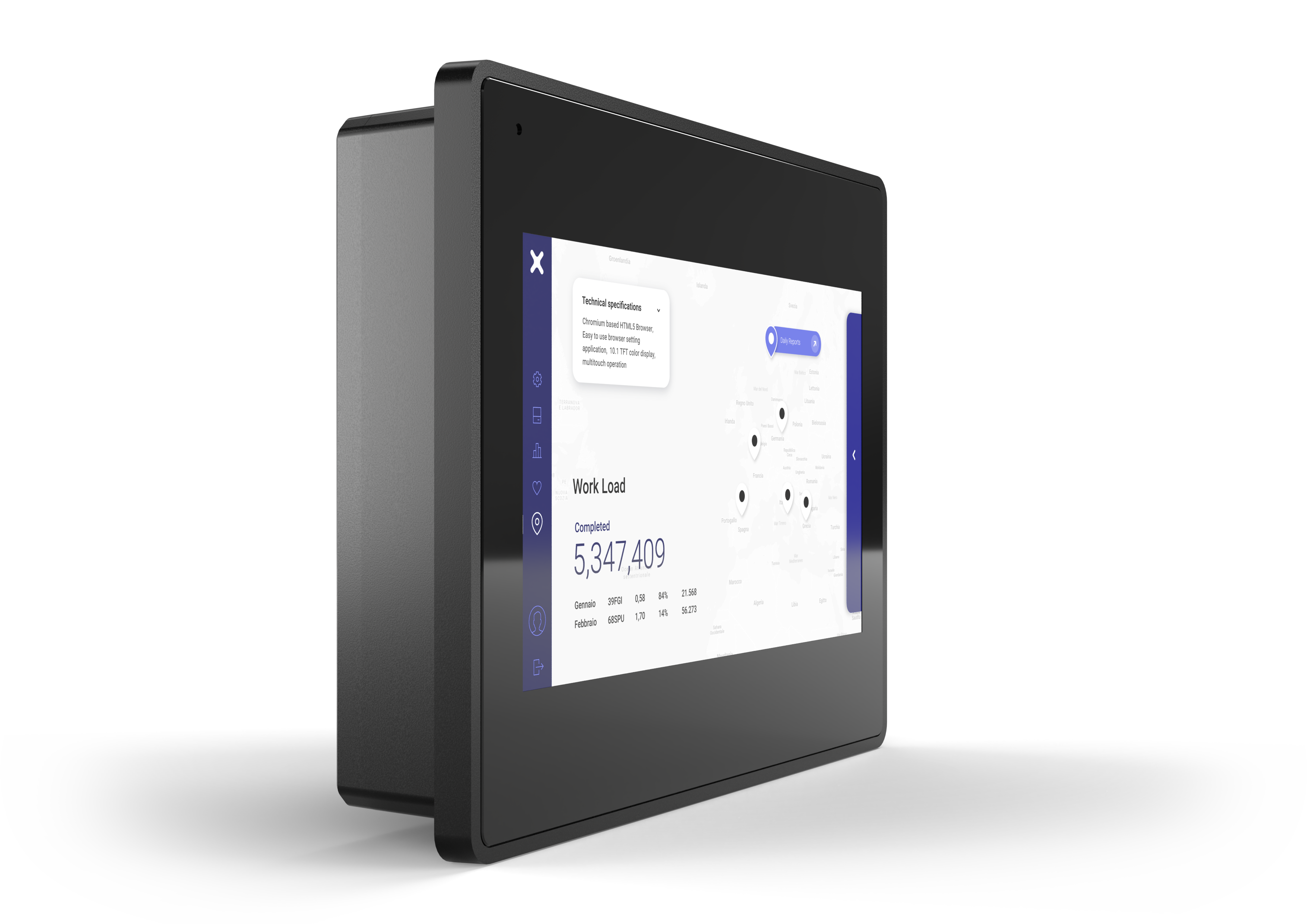

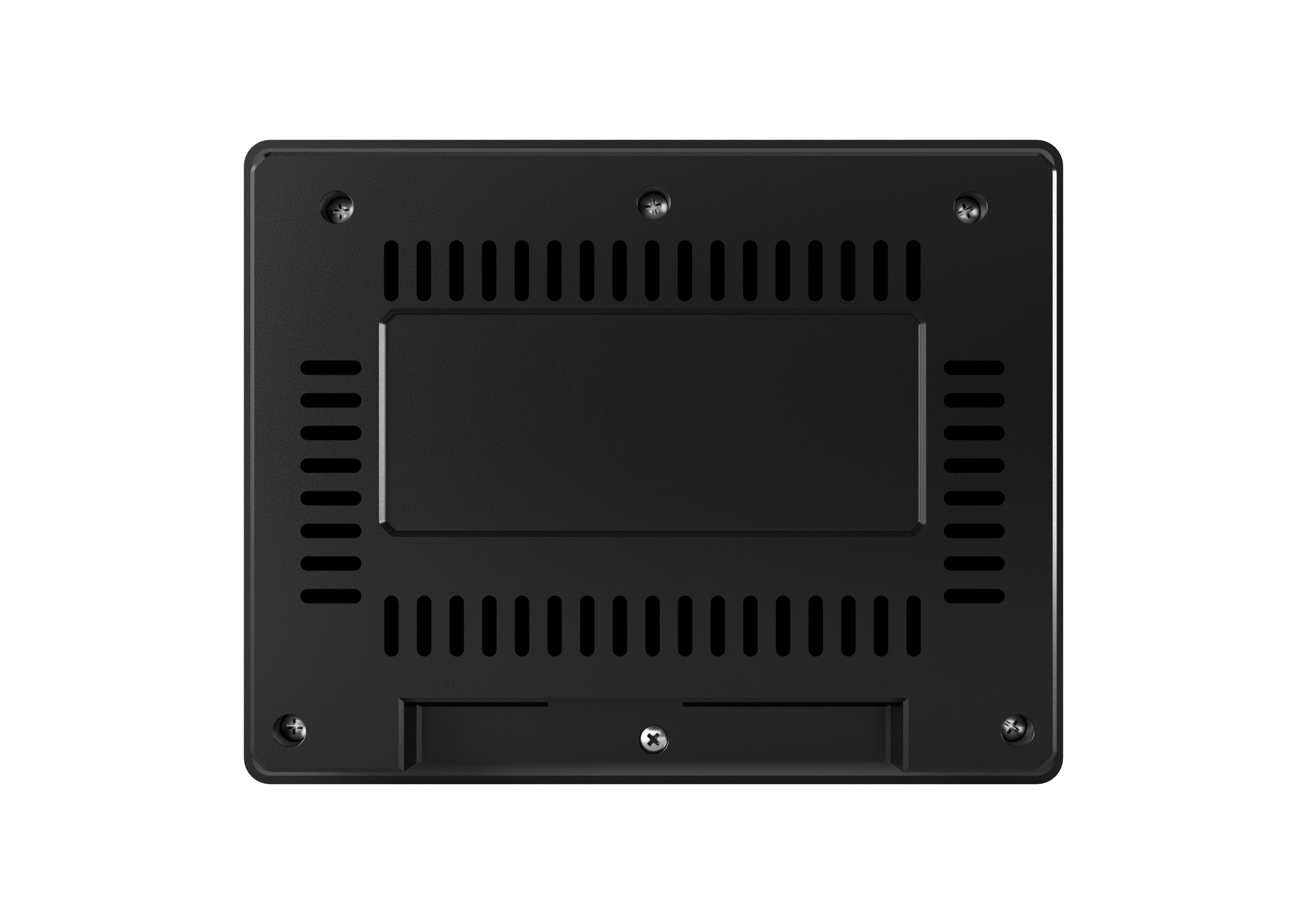

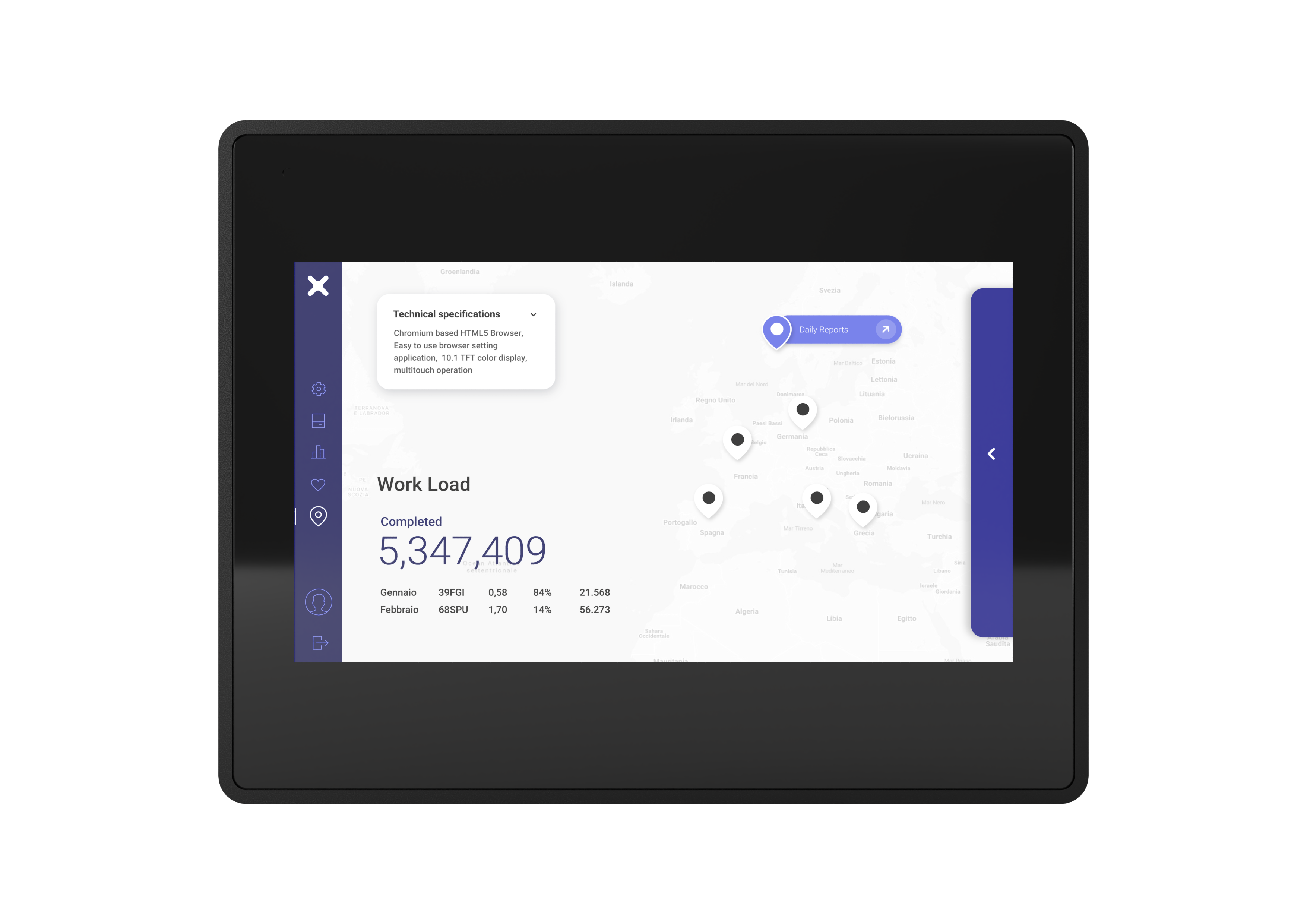

EXOR eX207, Industrial Touch Panel, 7", 1024x600, Ethernet, USB, Serial
| Manufacturer: | Exor International S.p.A |
|---|---|
| Manufacturer no.: | 101006200U-0002 |
| Product no.: | S-061-156342 |
Available, Delivery time: on request
Product information
Description
EXOR eX200 series: Technology at the service of the process
The new EXOR eX200 series WWS combine excellent technical specifications with high performance and integrate the CORVINA software and platform.
As well as offering control and data visualisation functions, these HMIs open the door to the IIoT world and provide easy access to innovation and technological advances.
They offer more security to protect sensitive data and can be customised to specific needs. In essence, it is a strategic investment in operational efficiency.
Show more
Show less
Technical data
| Height: | 147 mm |
|---|---|
| Length: | 187 mm |
| Weight: | 1 kg |
| Ambient temperature max.: | 70 °C |
| Ambient temperature min.: | -30 °C |
| Brightness (cd/m²): | 500 |
| CPU: | 64-bit RISC quad core - 1.6GHz |
| Country of origin: | Italy |
| Depth: | 37.5 mm |
| Display size: | 7" |
| Ethernet interfaces: | 2 (2 x 10/100) |
| Height: | 147 mm |
| JMobile usable?: | Yes |
| Memory / Flash: | 4 GB |
| Operating system: | Linux |
| Operating voltage (typical): | 24 V |
| Protection rating: | IP66 (Front) / IP20 (Rear) |
| RAM: | 2 GB |
| Resolution: | 1024 x 600 |
| Serial interfaces: | 1 (RS-232,RS-485,RS-422 SW config) |
| Standards / Approvals: | CE, UL61010-1, UL61010-2-201 |
| Touchscreen: | PCAP Multi-Touch |
| USB interfaces: | 1 (Host V2.0) |
| Voltage range max.: | 32 V |
| Voltage range min.: | 9 V |
Show more
Show less
Downloads
Show more
Show less
More information
EXOR eX200 series: Technology at the service of the process
The new EXOR eX200 series HMIs combine excellent technical specifications with high performance and integrate the CORVINA software and platform.
These HMIs not only offer control and data visualisation functions, but also open the door to the IIoT world and provide easy access to innovations and technological advances.
They offer greater security to protect sensitive data and can be customised to meet specific needs. Essentially, it is a strategic investment in operational efficiency.
